FOR RENOVATION & RETROFIT PROJECTS
Integrated
Electric Heated
Floor System
Built for renovation, retrofit, and project-based applications.
16mm thin profile. Can be installed over flat concrete, tile, or existing floors.
WHAT THIS PRODUCT IS
Finished Floor + Electric Heating in One Panel

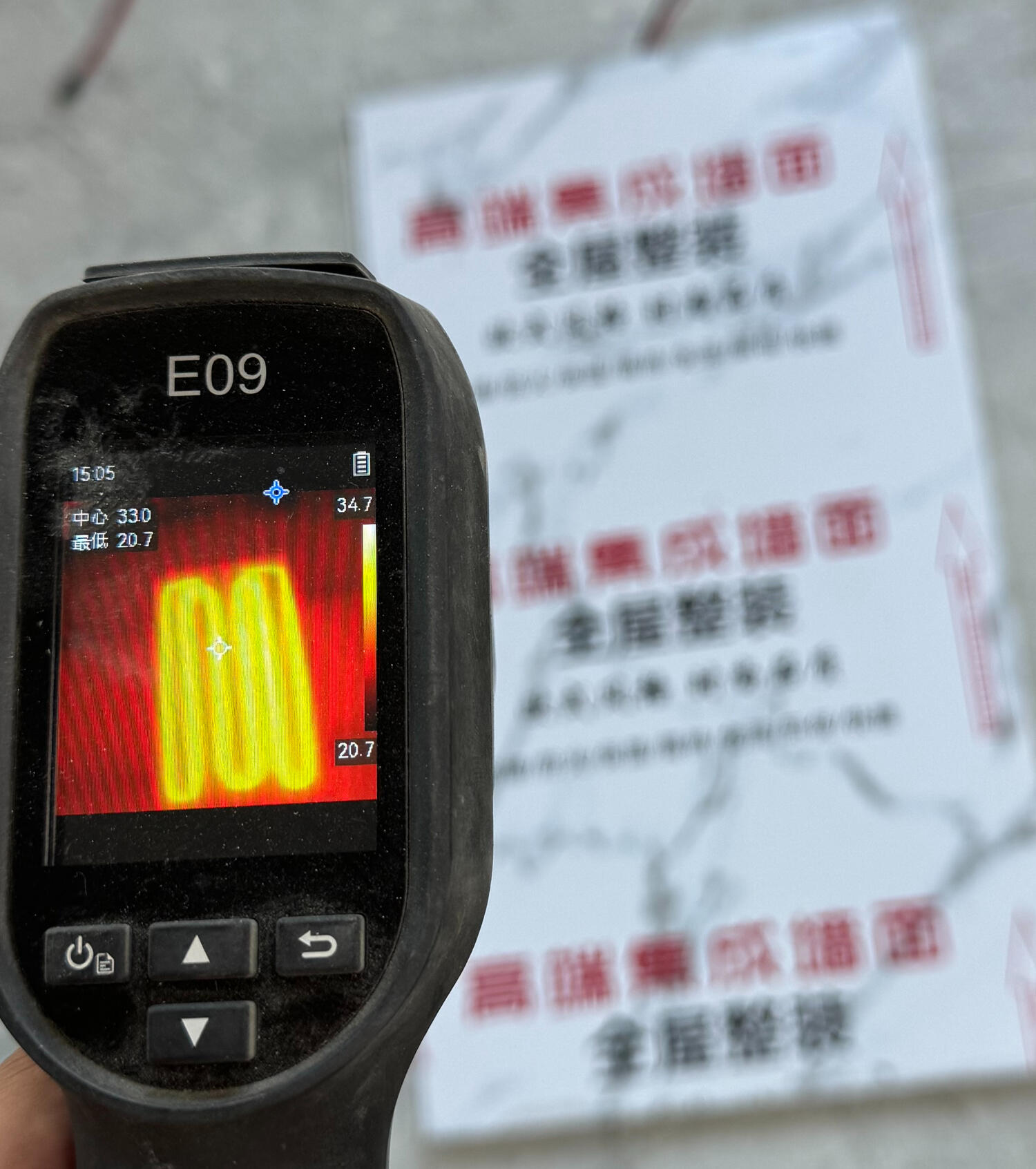

This is a rigid finished floor panel with built-in electric heating.
It is not a heating mat installed under another floor covering.
The floor surface and the heating function are combined in one panel.
WHY RENOVATION PROJECTS NEED A DIFFERENT SOLUTION
Traditional Floor Heating Is
Often Too Heavy for
Retrofit Work
In renovation projects, especially basements and older homes, traditional floor heating often means demolition, extra labor, added floor height, and longer installation time. These factors make retrofit work more expensive and less practical.
Demolition & debris
Breaking existing floors creates extra labor, mess, and removal cost.
Added floor height
Traditional systems often raise the finished floor too much for retrofit work.
More labor & time
More installation steps usually mean longer timelines and higher project cost.
CORE SPECIFICATIONS
Key Technical Information for Project Evaluation

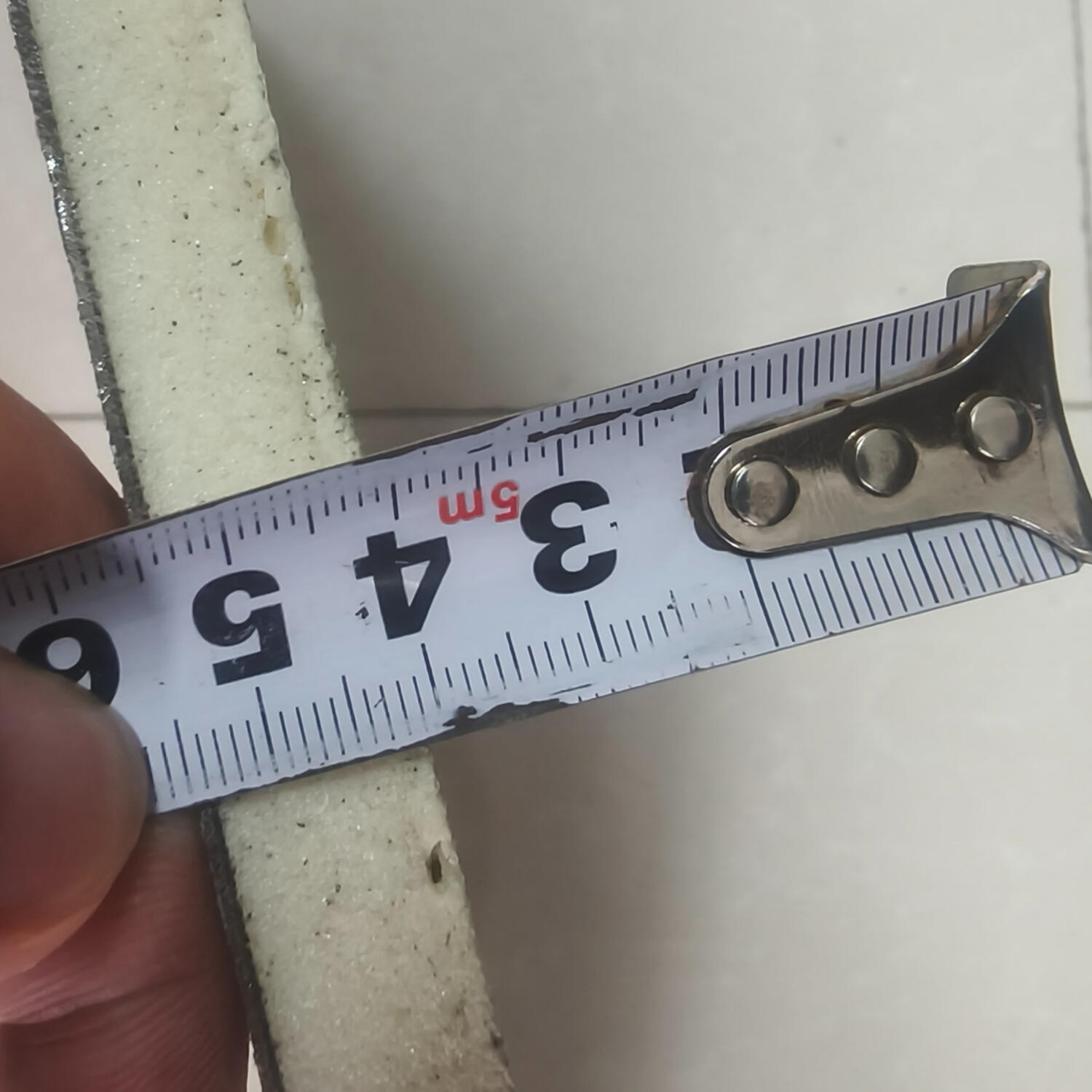

Thickness: 16 mm (0.63 inch)
Surface: Alloy decorative layer
Heating Core: Carbon fiber heating wire
Voltage: 110V / 220V available
Power Density: 150 W/m²
Width: 450 mm
Length: Customized in 0.5 m increments
Cutting Rule: Tail-end trimming only, max 50 cm
Thermostat: 25A, WiFi / non-WiFi
Zone Control: Independent thermostat and breaker per room
Heating Element Rating: IP68
FINISH OPTIONS
Available Surface Finishes for Different Project Styles

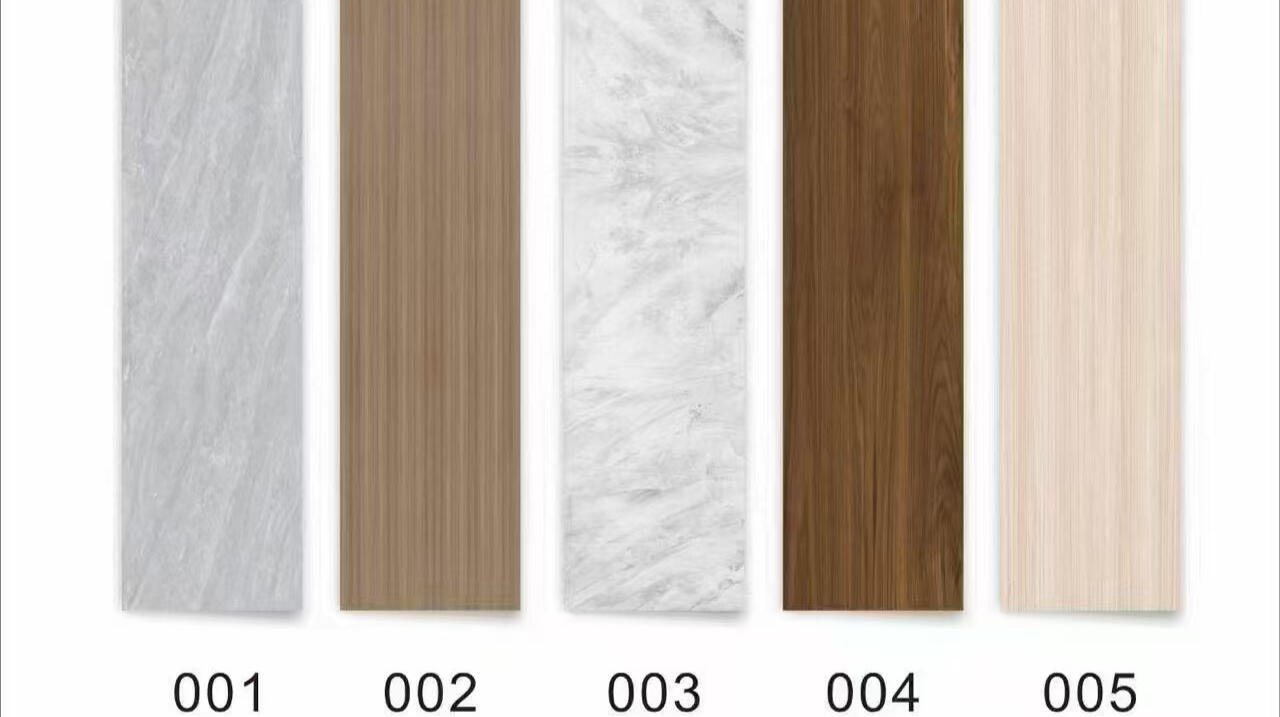

Our integrated heated floor system is available in multiple finishes, including stone-look and wood-look styles, to match different renovation and interior design needs.
More finish options are available upon request.
Contact us on WhatsApp for the full selection and project matching suggestions.
HOW TO START
Sample First, Then Project Quotation
We recommend starting with a sample panel first, then moving to drawing review and full project quotation after evaluation.
Step 1
Request a Sample
Test the finish, thickness, and heating performance before moving to a full project order.
Step 2
Share Your Drawing
After sample evaluation, send us your floor plan for project review.
Step 3
Get a Project Quote
We help estimate usable area, panel planning, and project quotation.
FAQ
Frequently Asked Questions
Below are some of the most common questions from contractors, distributors, and project buyers.
What is this product exactly?
This is an integrated electric heated floor system. It is a rigid finished floor panel with built-in electric heating, not a heating mat installed under another floor covering.
Is it suitable for renovation projects?

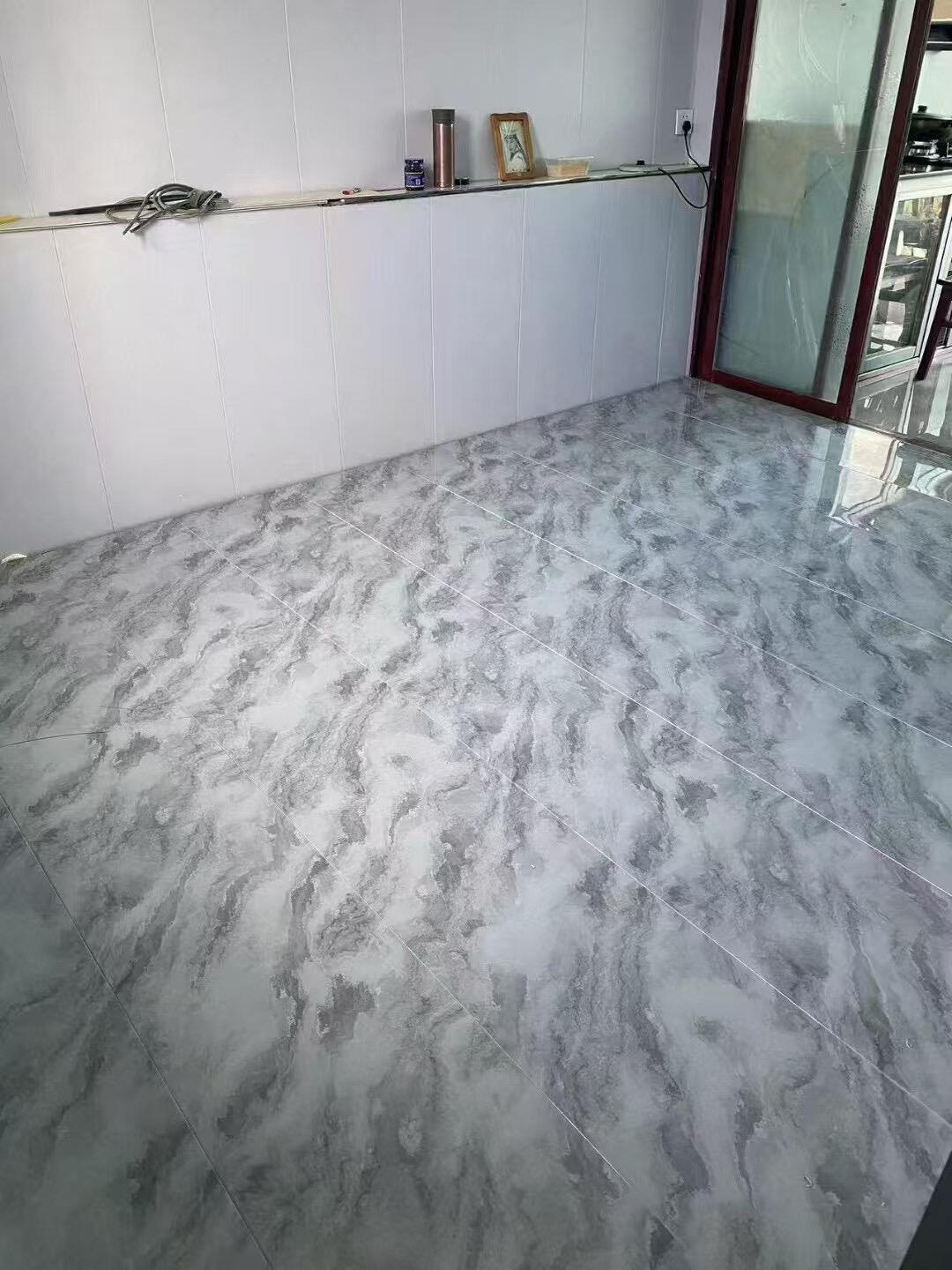

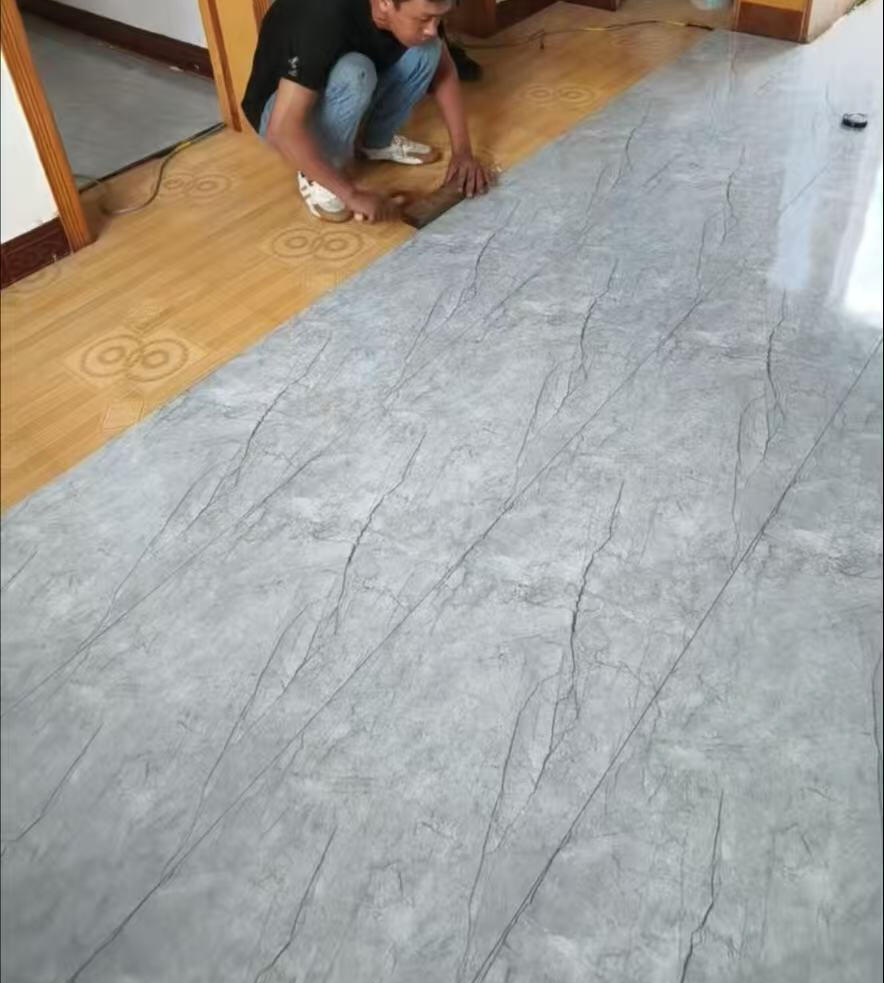

Yes. It is especially suitable for renovation and retrofit projects because it can often be installed over flat concrete, tile, or existing finished floors.
How thick is the system?
The total thickness is 16 mm (about 0.63 inch).
Can the panel be cut on site?
The heated panel cannot be cut in the middle. Only the tail end can be trimmed, with a maximum trimming allowance of 50 cm. For corners or irregular areas, matching non-heated panels can be cut freely on site.
Does each room need its own thermostat?
Yes. Each room or zone should use an independent thermostat, dedicated breaker, and separate electrical wiring.
Can you provide samples and review drawings?
Yes. We can provide sample panels for testing, review floor plans, estimate usable area, and prepare a project quotation.
MANUFACTURER SUPPORT
Factory-Direct Support for Project-Based Heated Floor Supply

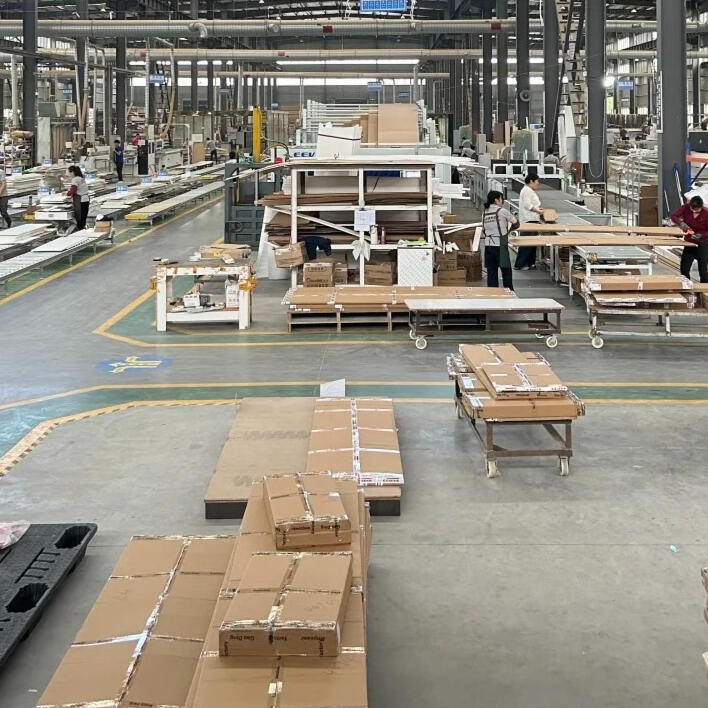

Xinhansheng (Hebei) Construction Co., Ltd. is a manufacturer focused on integrated electric heated floor systems for renovation, retrofit, and project-based applications. We support sample testing, drawing review, area takeoff, panel planning, and project quotation.
Sample testing
Drawing review
Area takeoff
Panel planning
Project quotation
Customized production
Project shipment support
